Alliance USA Distributors & Services

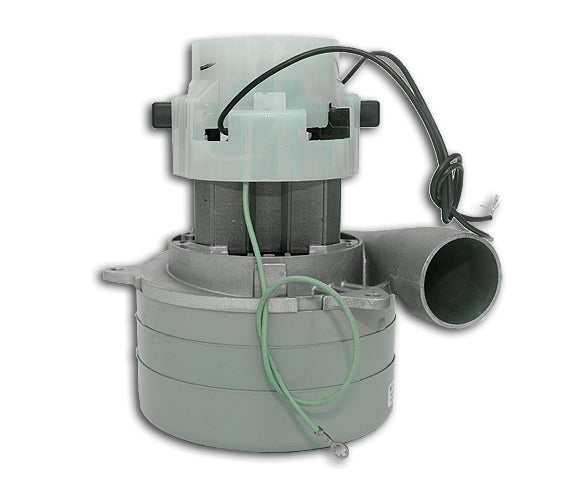

3-Stage Large Vac Motor
3-Stage Large Vac Motor
Regular price
$209.95
Regular price
Sale price
$209.95
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Basic Model Data
Volts: 120
Fan Stages: 3
Air Seal: Yes
Double Insulation: No
Type: Bypass
Discharge: Tangential
Fan Diameter: 5.7 Inches
Epoxy Paint: Yes
Bearings: Double Ball
General Motor Performance
Rating Watts: 1300
Sealed Vacuum: 117.4 Inches
Max Air Watts: 368
Max Airflow: 99.0 CFM
Rating Watts: 1300
Sealed Vacuum: 117.4 Inches
Max Air Watts: 368
Max Airflow: 99.0 CFM
Motor Performance Data Operating at 3/4″ — 19mm Orifice
Vacuum: 56.1 Inches
Input Watts: 1212
Air Watts: 368
Airflow: 55.7 CFM
Input Amps: 10.3
Motor Speed: 17,700 RPM
Vacuum: 56.1 Inches
Input Watts: 1212
Air Watts: 368
Airflow: 55.7 CFM
Input Amps: 10.3
Motor Speed: 17,700 RPM
